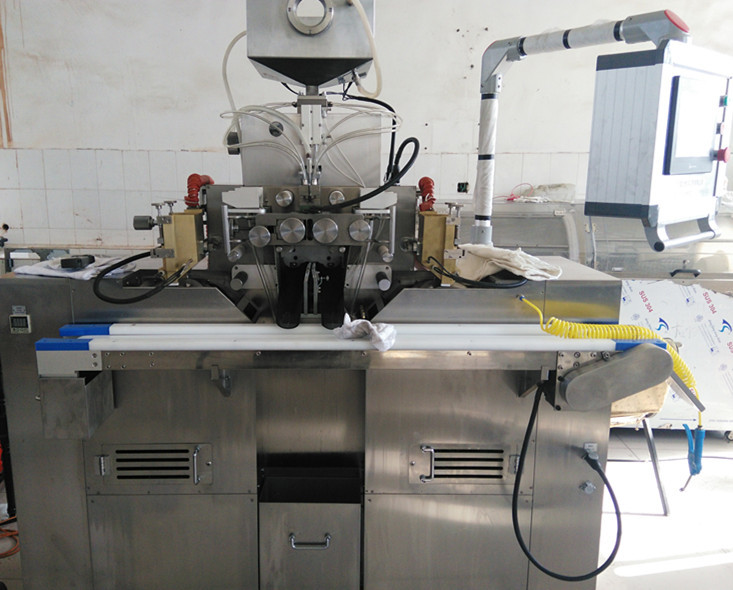

Main Features

 Filling tolerance <±1.5%
 Maximum single plunger dosage－ 2ml
 Die Roll Size — Ф80x100mm
 Die Roll Speed — 0~5rpm, stepless adjustable
 Main Motor Power— 0.75 kW
 Main Machine Power — 3kW
 Power — 3 Phase 220V/380V/415V,50Hz/60Hz
 Overall Dimensions(L x W x H) — 1650 x 800 x 2050mm

 Weight — 600kg
 The cooling drums are cooled by both water and air.

 Consumption of compressed air — 50NL/h
 Consumption of gelatin — 2.5L/h( at 3 rpm)
 Material consumption — 4.6L/h(at 3 rpm)

Machine Parts

Name: Lubirication

 Lubrication oil consumption — 70g/h(Based on 3 rpm

Main Features

Name: Pump
Original: Germany
 Maximum single plunger dosage－ 2ml
Dosage Devation <±1.5%

Machine Parts

Name: DieRoll
With wedge, distribution plate, etc.
Die rolls are made from aviation high hardness aluminum alloy, injection wedge made from copper and coated with PTFE, meet GMP requirement;

Main Features

Name: Electricity Part
Brand: Schineider
All the contactors, relays, breakers, switches and knobs are Schneider brand.
Control system adopts PLC control.
