Soft Capsule Encapsulation Machine Product Description
Fish oil / Vitamin large scale soft capsule encapsulation machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the capsule mould automatically and synchronously, it’s very convenient to adjust the spraying time.
And the control system has faults diagnosis function. It can realize remote diagnosis after the upgrade.
The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 large softgel making machine more in line with the requirements of GMP.

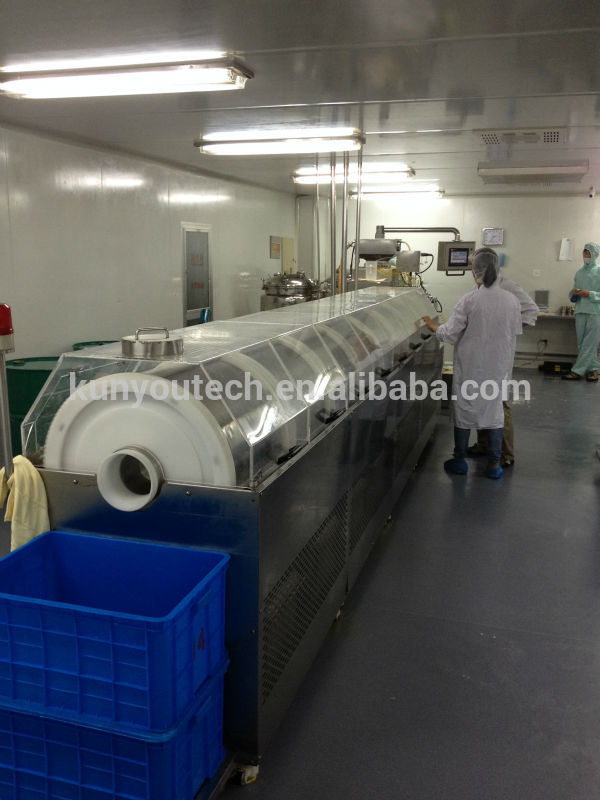

S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.
Specifically speaking, it has the following characteristics:
Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.
Specification
| Model | S610 |
| Die roll size | 150×250mm |
| Die roll speed | 0~5rpm |
| Max plunging volume per stroke | 0~2ml |
| Plunger numbers | 20/24 |
| Overall dimension | 2050×1200×1850 |
| Weight of main machine | 1900kg |
| Power consumption | 13.5kw |
| Control mode | PLC+Touch Screen |
| output | 8#OV 120000 pcs/hour |
Our softgel making machine not only can produce soft capsule, such as fish oil, vitamin, but also can produce bath beads for cosmetic.
